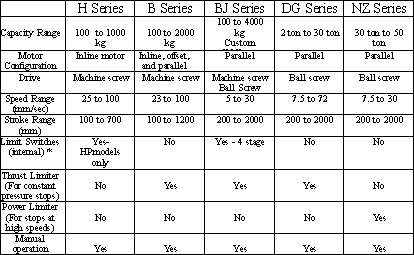

The H Series Motor Cylinder is a low cost, compact, in line type electric cylinder suitable for linear reciprocating movements of lifting, lowering, pushing and pulling. Cam type limit switch is installed in HP models.Capacities (kg) 100 to 1000, Speed (mm/sec) 25 to 100, Stroke (mm) 100 to 700.
The B Series is a general purpose motor cylinder designed for industrial applications. A wear-resistant transmission screw mechanism and a unique thrust limiter allow constant pressure stops at any position. Capacities (kg) 100 to 2000, speed (mm/sec) 23 to 100, stroke (mm) 100 to 1200.
The BJ Series motor cylinder is designed exclusively to control dampers and valves. In addition to all of the functions of conventional damper and valve drives, compact size and low operating cost are additional benefits. Capacities (kg) 100 to 20,000, speed (mm/sec) 10 to 30, stroke (mm) 200 to 2,000.
The DG Series motor cylinder is a heavy duty model capable of developing a thrust of up to 30 tons. This is made possible through the use of a high efficiency ball screw and powerful reduction gears. In addition, a unique thrust limiter combines load carrying disk springs with limit switches, allowing constant pressure stops at any position. Capacities (ton) 2 to 30, speed (mm/sec) 7.5 to 72, stroke (mm) 200 to 2,000.
The NZ Series motor cylinder is a large heavy load model capable of developing a thrust up to 100 tons. Large ball screws and powerful reduction gears are used. Unique overload safety power limit switches operate instantaneously when an overload occurs. The constant pressure stop feature is not available on these models. Capacities (ton) 35 to 100, speed (mm/sec) 7.5 to 20, stroke (mm) 200 to 2,000.
